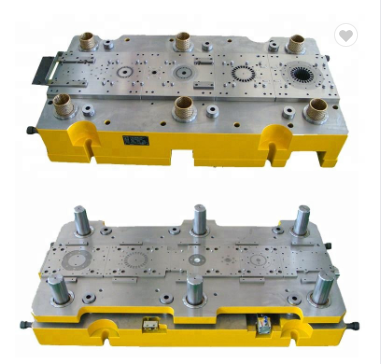

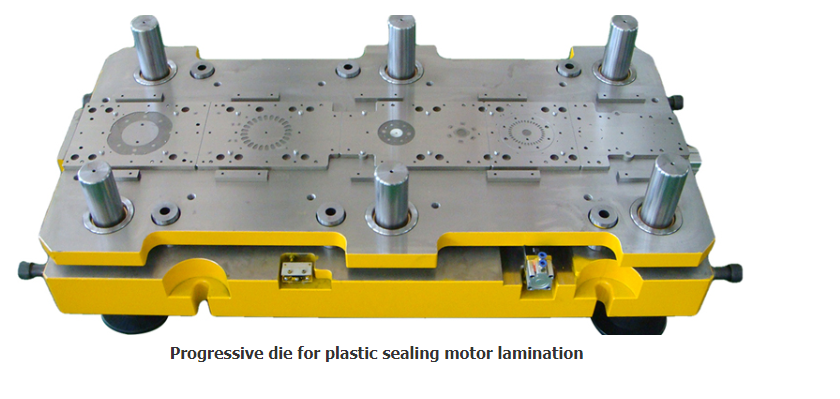

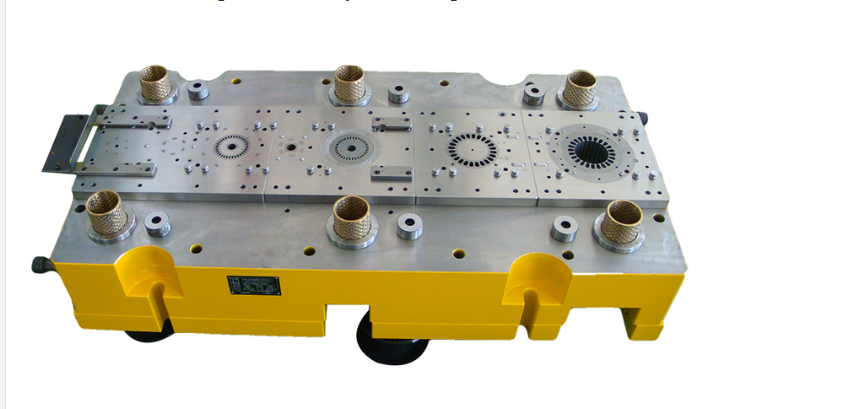

refrigerator motor core stator rotor lamination stamping die

No.022
Progressive die, Electrical lamination stamping die , Lamination progressive die , Motor core stamping die , Stator rotor stamping die , Lamination tools, High speed stamping die , Carbide tool Fan motor lamination progressive die , pumps motor lamination progressive die, Home appliance motor core progressive die , automobile motor lamination progressive die, power tool motor lamination progresive die, EI lamination progressive die, auto stacking stamping die Motor stator rotor stamping mould
  • refrigerator motor core stator rotor lamination stamping die
  • refrigerator motor core stator rotor lamination stamping die
  • refrigerator motor core stator rotor lamination stamping die
  • refrigerator motor core stator rotor lamination stamping die
SPECIFICATION

Item

Description

Description

refrigerator motor core stator rotor lamination stamping die

Type

Progressive stamping die

Material

SKD11, D2, SKH51, SKD61, Cr12MoV ,etc

Work piece Material

Alloy steel: SKD11, SKD61, Cr12MOV, SLD, DC53   High speed steel:SKH51, SKH9, YXM1

Stations / Steps

According to the auto parts designing

Productions Cover

Sheet metal auto parts, Auto stamping parts, Home Electrics stampingparts, Device stamping parts, etc

Productivity

Max 400 pcs/min,

Work piece Precision:

0.005mm

Mould Tolerance

0.001-0.003 mm

Life Time

150 MILLION STROKES

Design Software

AutoCAD, PRO/E, Solid works, UG(NX), Cimatron, MasterCAM

Drawing Format

STP, PRT, ASM, PDF, DWG, DXF,JPG,TIFF,PNG

Surface Treatment

Powder coating, Hot galvanized, Painting, Polishing, Brushing ,Chrome/Zinc/Nickel plating

Certification

ISO9001:2008

Service

OEM / ODM service

Machinery

Equipments

Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine,

Precision flat milling, Saw machine, Punching machine

Testing Machine

100% Inspection, CMM, Projector, Microscope

Supplying Report

Material reports and Dimension test reports made from the original the place.

Payment Terms

T/T, L/C , West Union ,etc

Advantage

We are experienced in the mould design and process through ourcooperation with Japanese and USA companies in the past years.We had built our own factory in Shenzhen and established long-term,and stable business relationships with other factories.

Business Scope

& Service Details

All products can be customized according to different Nationalstandards and customer needs. As a trading & manufacturingcompany, JR is also involving in OEM & ODM outsourcingand collaboration, bespoke manufacturing of

 blue drawing,sample, raw material and originality products. We can provideclients with product design, competitive pricing, qualityassurance

that fulfill their needs and logistics services.

Standard

JIS AISI DIN etc.
