Item |
Description |
Description |

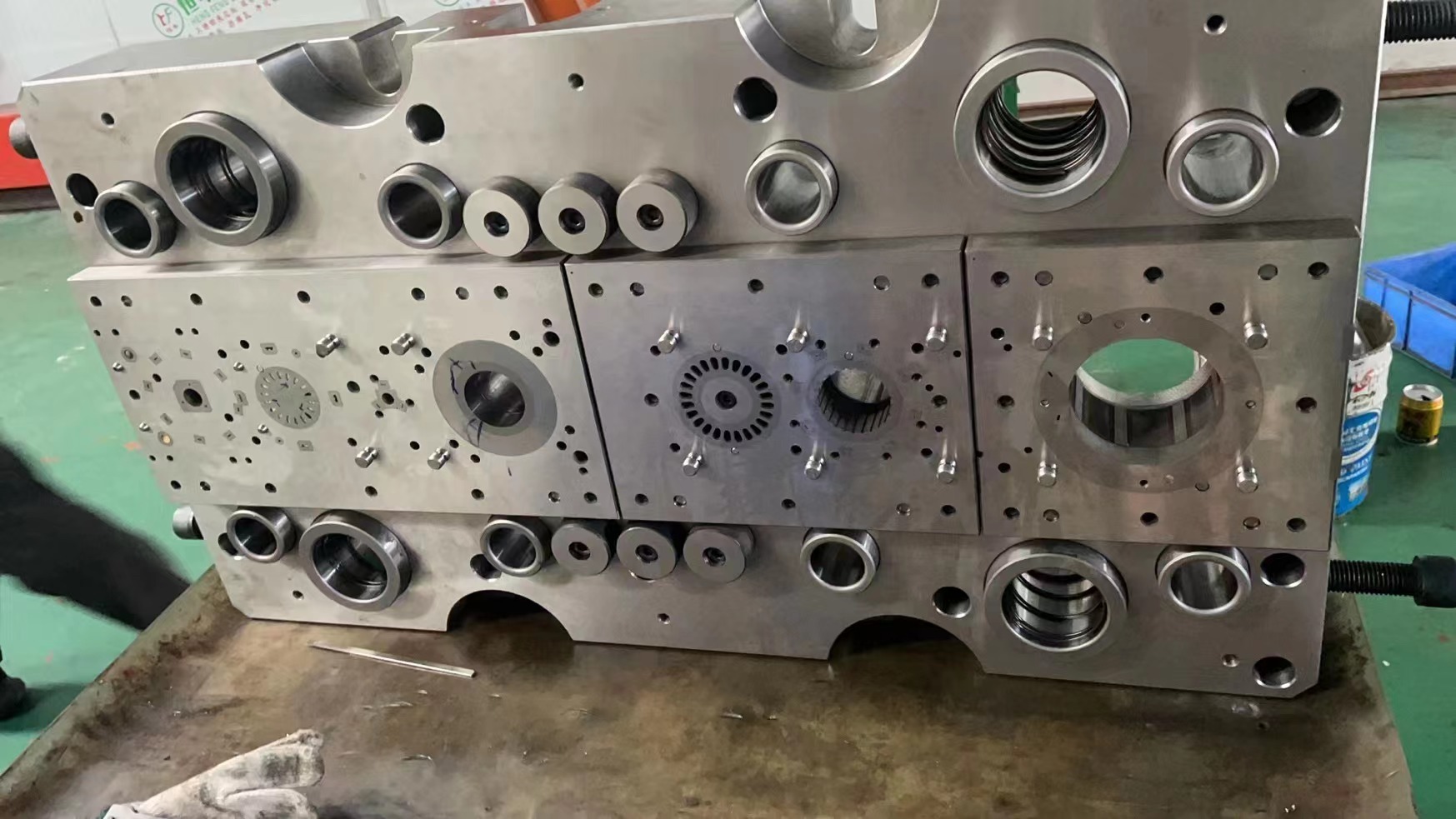

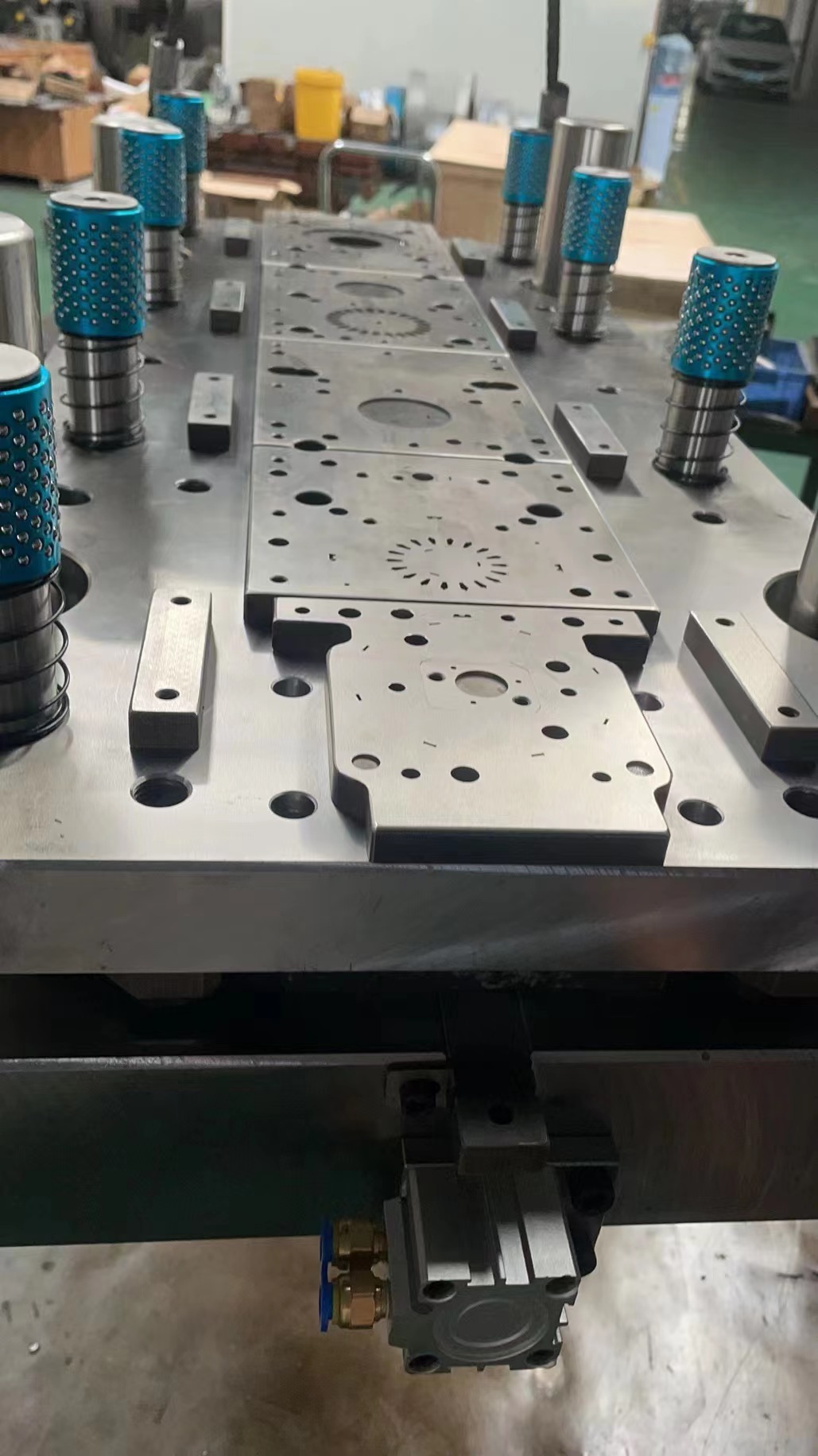

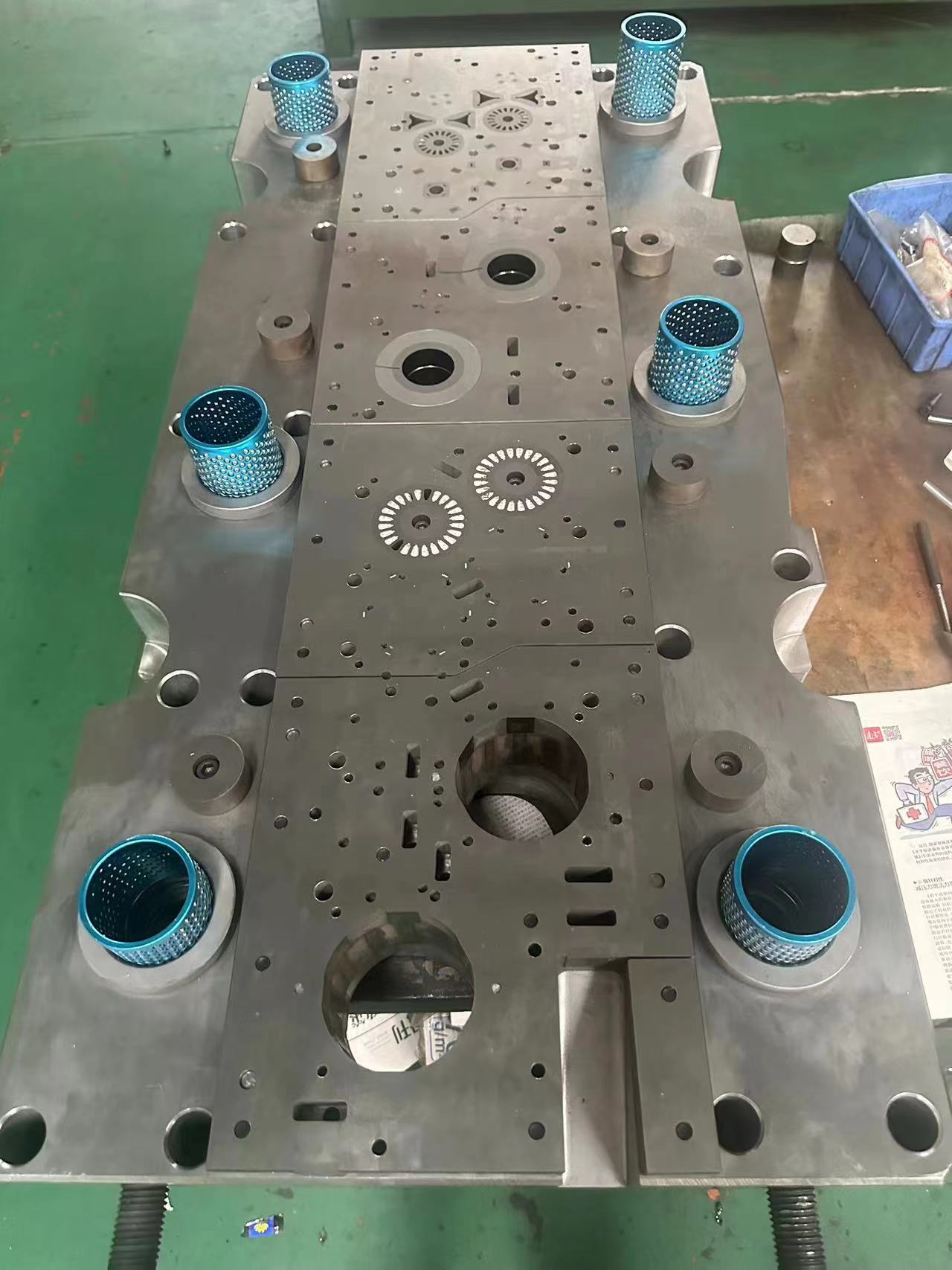

90mm motor core lamination progressive die |
Type |
Progressive stamping die |
Material |
SKD11, D2, SKH51, SKD61, Cr12MoV ,etc |
Work piece Material |
Alloy steel: SKD11, SKD61, Cr12MOV, SLD, DC53 High speed steel:SKH51, SKH9, YXM1 |
Stations / Steps |
According to the auto parts designing |
Productions Cover |
Sheet metal auto parts, Auto stamping parts, Home Electrics stampingparts, Device stamping parts, etc |
Productivity |
Max 400 pcs/min, |
Work piece Precision: |
0.005mm |
Mould Tolerance |
0.001-0.003 mm |
Life Time |
150 MILLION STROKES |
Design Software |
AutoCAD, PRO/E, Solid works, UG(NX), Cimatron, MasterCAM |
Drawing Format |
STP, PRT, ASM, PDF, DWG, DXF,JPG,TIFF,PNG |
Surface Treatment |
Powder coating, Hot galvanized, Painting, Polishing, Brushing ,Chrome/Zinc/Nickel plating |
Certification |
ISO9001:2008 |
Service |
OEM / ODM service |
Machinery Equipments |
Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine |
Testing Machine |
100% Inspection, CMM, Projector, Microscope |
Supplying Report |
Material reports and Dimension test reports made from the originof the place. |
Payment Terms |
T/T, L/C , West Union ,etc |
Advantage |
We are experienced in the mould design and process through ourcooperation with Japanese and USA companies in the past years.We had built our own factory in Shenzhen and established long-term,and stable business relationships with other factories. |
Business Scope & Service Details |
All products can be customized according to different Nationalstandards and customer needs. As a trading & manufacturingcompany, JR is also involving in OEM & ODM outsourcingand collaboration, bespoke manufacturing of blue drawing,sample, raw material and originality products. We can provideclients with product design, competitive pricing, qualityassurance that fulfill their needs and logistics services. |
Standard |
JIS AISI DIN etc. |
